CQLinq Features


This document assumes that you are familiar with the LINQ syntax. Before reading the current document, it is preferable that you've read the CQLinq syntax document, but it is not mandatory, because when needed some links to the CQLinq syntax document are proposed.

Once you've analyzed your first VB6 code base with VBDepend, you'll see that the VBDepend project created contains around 80 default CQLinq queries and rules, categorized in different groups.

This set of default queries and rules cover the various CQLinq features in terms of code querying.

This document is a quick list of these features and informs the reader about what is possible with CQLinq.


Querying the Code Object Model

The Code Elements Hierarchy
For VBDepend, a VB6 code base is made of Project,Namespace,Type,Method and Field objects. This object model reflects the hierarchical organization of the code where the code base is made of projects that contain namespaces that contain types that contain methods and fields. Notice that if a same namespace is spawned across N projects, the hierarchy is preserved and there are N Namespace objects, one contained in each proejct.

To navigate across this hierarchy, several parent and child properties are proposed like Method.ParentType or Project.ChildMethods. Most of the time, instead of using these properties it is more convenient to use queries like this:

from m in Application.Namespaces.WithNameLike("ProductName.FeatureA").ChildMethods()
where m.CyclomaticComplexity > 10 select m


The Predefined Domains
To access these various kind of code elements, CQLinq proposed different predefined domains Projects, Namespaces, Types, Methods, Fields, codeBase, Application, ThirdParty and JustMyCode.

Base and Derived Classes Hierarchy
There are several ways to navigate across the base and derived classes hierarchy:

// Accessing the method ThatDeriveFromAny()
from t in JustMyCode.Types.ThatDeriveFromAny(ThirdParty.Types)

// Accessing the extension methods DeriveFrom()
where !t.DeriveFrom("CWnd")
select new {
 t,
 // Various properties of Type
 t.BaseClass,
 t.BaseClasses,
 t.DerivedTypes, // Include direct and indirect derived types
 t.DirectDerivedTypes }

Methods abstract, virtual and override
The CQLinq proposes also facilities to navigate across methods overridden, and overrides:

from m in Application.Methods
where !m.IsAbstract && m.IsVirtual
select new {
  m,
  // Enumerates methods overridden by m
  m.OverriddensBase,
  // Enumerates methods that overrides m directly
  m.OverridesDirectDerived,
  // Enumerates methods that overrides m directly or indirectly
  m.OverridesDerived }



Querying the Code Dependencies and Design

The dependency model is general in the sense that it doesn't rely on the kind of usage (field assignment, method call...). A and B being two code elements, we say that A depends on B if, when B is not available, A cannot be compiled.

Here's a sample of dependency query:

from m in Methods where
m.IsUsing("MyType") &&
m.IsUsedBy("MyProjectName".AllowNoMatch())
select m


Notice how such extension methods are used by rules generated from dependency graph or dependency matrix, to forbid some particular dependency:

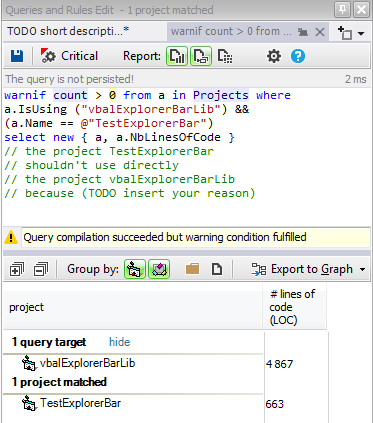

The rule generated is shown below. It could be easily adapted to forbid or enforce any dependency in a code base.



VBDepend provides also a convenient way to query dependencies of a code base (and often a faster way as well):

from t in Types.UsedByAny(Types.Where(t => t.IsStatic)) select t


Indirect Usage

VBDepend provides some methods containing the word Indirect in their names,to deal with indirect dependencies like for example, the method IsIndirectlyUsing().
For example if A is using B that is using C, A is not directly using C but A is indirectly using C (with a depth of 2).
Here is a query that enumerates methods that are directly or indirectly calling the Print method MyClass.Print().

from m in Methods
let depth0 = m.IsIndirectlyUsing("MyClass.Print()")
select m

The method DepthOfIsUsing goes further since it returns the depth of usage.

from m in Methods
let depth0 = m.DepthOfIsUsing("MyClass.Print()")
where depth0  >= 0 orderby depth0 ascending
select new { m, depth0 }


The depth returned is a Nullable<ushort> value.
  • It is null if m doesn't call indirectly the target method.
  • It is 1 if m calls directly the target method.
  • It is greater than 1 if m calls indirectly the target method.
This indirect usage possibility is especially useful to generate Call Graphs or Class Inheritance Graphs.

Some of the methods also contain the word Indirect or the word Depth to work with indirect usage from a sequence to a code element or even any code elements of a target sequence (suffix Any).
For example, the following query matches all methods that are calling, directly or indirectly the static methods, with the depth of call:

let statics = Methods.Where(m => m.IsStatic).ToHashSet()
let depthMetric = Application.Methods.DepthOfIsUsingAny(statics)
from m in depthMetric.DefinitionDomain
let depthValue = depthMetric[m]
orderby depthValue ascending
select new { m, depthValue }



Querying the Code Quality and Code Metrics

VBDepend computes 60 code metrics, listed here.

// <Name>Quick summary of methods to refactor</Name>
warnif count > 0 from m in JustMyCode.Methods where
  // Code Metrics' definitions
  m.NbLinesOfCode > 30 ||  // http://www.VBDepend.com/Metrics.aspx#NbLinesOfCode
  m.CyclomaticComplexity > 20 ||  // http://www.VBDepend.com/Metrics.aspx#CC
  m.NestingDepth > 5 ||  // http://www.VBDepend.com/Metrics.aspx#ILNestingDepth
  m.NbParameters > 5 ||  // http://www.VBDepend.com/Metrics.aspx#NbParameters
  m.NbVariables > 8 ||  // http://www.VBDepend.com/Metrics.aspx#NbVariables
  m.NbOverloads > 6  // http://www.VBDepend.com/Metrics.aspx#NbOverloads

select new { m, m.NbLinesOfCode, m., m.CyclomaticComplexity,
              m.ILNestingDepth,
             m.NbParameters, m.NbVariables, m.NbOverloads }
Notes that many of these code metrics returns a nullable numeric value because they are not necessarily defined for all code elements. For example the #Lines of Code is not computed for third-party code elements.

Custom Metrics
Thanks to the LINQ flexibility it is easy to compose the default code metrics to create more elaborated code metrics, like for example:
// <Name>Custom metric</Name>
warnif count > 0
from m in JustMyCode.Methods

// Don't match too short methods
where m.NbLinesOfCode > 10

let CC = m.CyclomaticComplexity
let CustomMetric = (CC * CC )/100
where Custom != null && Custom > 30
orderby Custom descending, m.NbLinesOfCode descending
select new { m, Custom, CC, , m.NbLinesOfCode }

A custom code metric object can also be obtained from the method FillIterative(). For example, this possibility is used in the rule to obtain dead types, but also to obtained types only used by dead type (and the depth of usage):

// <Name>Potentially dead Types</Name>
warnif count > 0
// Filter procedure for types that should'nt be considered as dead
let canTypeBeConsideredAsDeadProc = new Func<IType, bool>(
   t => !t.IsPublic && //   Public types might be used by client applications of your projects.
&&
        !t.IsGeneratedByCompiler

// Select types unused
let typesUnused =
   from t in JustMyCode.Types where
   t.NbTypesUsingMe == 0 && canTypeBeConsideredAsDeadProc(t)
   select t

// Dead types = types used only by unused types (recursive)
let deadTypesMetric = typesUnused.FillIterative(
types => from t in codeBase.Application.Types.UsedByAny(types).Except(types)
         where canTypeBeConsideredAsDeadProc(t) &&
               t.TypesUsingMe.Intersect(types).Count() == t.NbTypesUsingMe
         select t)

from t in deadTypesMetric.DefinitionDomain
select new { t, t.TypesUsingMe, depth = deadTypesMetric[t] }



Querying the Code Diff

VBDepend comes with the unique feature to compare two different snapshots of a code base to see what was changed/added/removed. For example, the following query enumerates methods where code has been changed:

from m in Application.Methods
where context.CompareContext.CodeWasChanged(m)
select m


Actually you can just write the shortest query below, and the CQLinq compiler will take care to transform it into the query above:

from m in Application.Methods
where m.CodeWasChanged()
select m


Once such query is written, the VBDepend UI offers the capability to compare the two source files versions of the method changed.






Notice the two methods OlderVersion() and NewerVersion() . As their names suggest, these methods returns the older or newer version of a code element, or null if the code element has been added (hence no older version) or removed (hence no newer version). These methods can be useful for example to write the query below that tracks the evolution in terms of method complexity:

// <Name>Methods that became more complex</Name>
from m in codeBase.OlderVersion().Methods
where m.IsPresentInBothBuilds()
let oldCC = m.CyclomaticComplexity
let newCC = m.NewerVersion().CyclomaticComplexity
where oldCC != null && newCC > oldCC
select new { m, oldCC, newCC }

Notice the call to IsPresentInBothBuilds to ensure that we only deal with methods that are both in the older and newer code base snapshot, to prevent any NullReferenceException while running the query!

As this last query shows, mixing the diff feature with others CQLinq features like code quality metrics or dependencies, can lead to powerful code queries and rules to track the evolution of a code base.


Querying the Naming of Code Elements

CQLinq proposes several facilities to query the name of the code elements. This is especially useful to write simple code naming conventions (based on regular expressions)...

// <Name>Abstract base class should be suffixed with 'Base'</Name>
warnif count > 0 from t in Application.Types where
  t.IsAbstract &&
  t.IsClass &&

    t.DepthOfInheritance == 1 &&

  ((!t.IsGeneric && !t.NameLike (@"Base$")) ||
   ( t.IsGeneric && !t.NameLike (@"Base<")))
select new { t, t.DepthOfInheritance }


...or smart code naming conventions:

// <Name>Avoid naming types and namespaces with the same identifier</Name>

// Not only this can provoke compiler resolution collision,
// but also, this makes code less maintainable because
// concepts are not concisely identified.

warnif count > 0
let hashsetShortNames = Namespaces.Where(n => n.Name.Length > 0).Select(n => n.SimpleName).ToHashSet()

from t in JustMyCode.Types
where hashsetShortNames.Contains(t.Name)
select new { t, namespaces = Namespaces.Where(n => n.SimpleName == t.Name) }


The code elements naming feature is summarized in the CQLinq syntax document, in the section Matching code elements by name string.


Querying the States Mutability

The concept of immutability is becoming more and more popular. Immutability is especially useful when dealing with concurrent accesses into multi-threaded environment.

A type is considered as immutable if its instance fields cannot be modified once an instance has been built by a constructor. A static field is considered as immutable if it is private and if it is only assigned by the static constructor. An instance field is considered as immutable if it is private and if it is only assigned by its type’s constructor(s) or its type’s static constructor. Notes that a field declared as readonly is necessarily immutable, but a field can be immutable without being declared as readonly. In this last case, the keyword readonly can be added to the field declaration, without provoking any compilation error.

At analysis time, VBDepend computes the mutability of types and fields. The result is available through the properties Type.IsImmutable and Field.IsImmutable. It is then easy to write such rule for example:

// <Name>Structures should be immutable</Name>
warnif count > 0 from t in Application.Types where
   t.IsStructure &&
  !t.IsImmutable
let mutableFields = t.Fields.Where(f => !f.IsImmutable)
select new { t, t.NbLinesOfCode, mutableFields }


The two properties ChangesObjectState and ChangesTypeState can be use to enforce or check that a method is pure. A pure method is a method that doesn't assign any instance or static fields.

Also, to control the write access to a particular field, you can use the extension method AssignField():
from m in Methods where m.AssignField("MyClass.myfield")
select new { m, m.NbLinesOfCode }
In addition, VBDepend provides for fields the 3 properties MethodsAssigningMe , MethodsReadingMeButNotAssigningMe and MethodsUsingMe and for methods it provides the AssignField() method.


Querying Source Files Paths

For each code element you can access to their SourceDecls.
Having access to source file declarations opens a range of interesting applications. For example the default query matching methods to discard from the JustMyCode code base view, relies on some patterns on source file name, and can be easily adapted to any situation:
// <Name>Discard generated and designer Methods from JustMyCode</Name>
// --- Make sure to make this query richer to discard generated methods from VBDepend rules results ---
notmycode

//
// First define source files paths to discard
//
from a in Application.Projects

let projectSourceFilesPaths = a.SourceDecls.Select(s => s.SourceFile.FilePath)

let sourceFilesPathsToDiscard = (
    from filePath in projectSourceFilesPaths
    let filePathLower= filePath.ToString().ToLower()
    where
       filePathLower.Contains("generated")
  select filePath
).ToHashSet()

//
// Second: discard methods in sourceFilesPathsToDiscard
//
from m in a.ChildMethods
where (sourceFilesPathsToDiscard.Contains(m.SourceDecls.First().SourceFile.FilePath))
select new { m, m.NbLinesOfCode }

Several default rules concerning source files organization are proposed when you create a new VBDepend project.
